FTP/FTPS/SFTP Servers
R-Drive Image can save images on FTP/FTPS/SFTP servers and restore them from those servers. Note that incremental/differential imaging modes are disabled for such servers.
You need to connect to the FTP/FTPS/SFTP server before you'll be able to use it.
To connect to an FTP/FTPS/SFTP server:

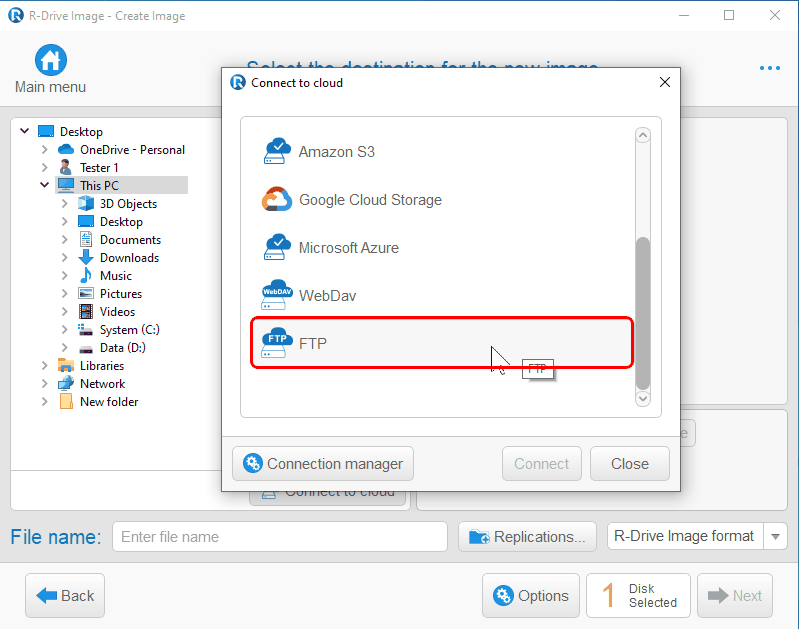

| 1 | Click the Connection to cloud button |
Connect to cloud
| 2 | Select FTP and double-click it |
Connect to FTP window

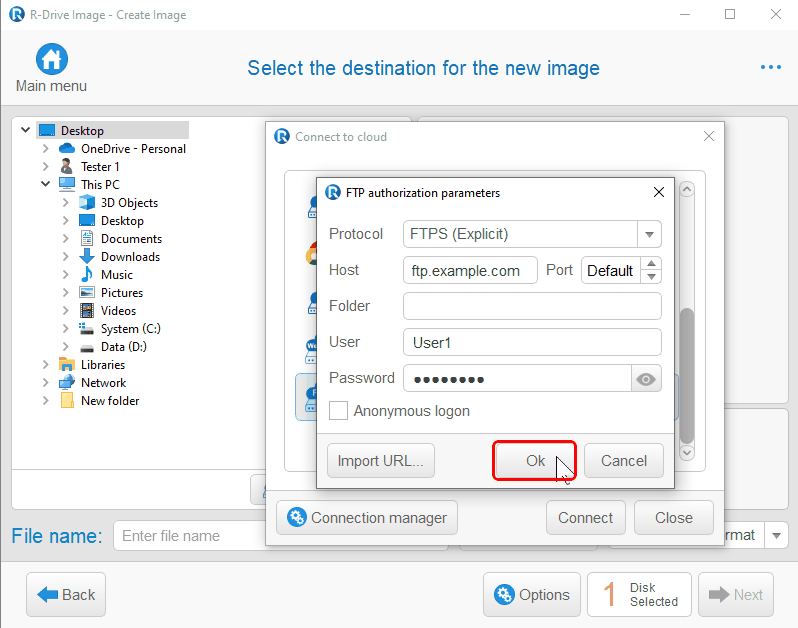

| 3 | Enter the FTP parameters and click the OK button |
Connect to FTP window
You may select either the FTP, or FTPS, or SFTP protocols.
FTPS has two modes:
|
FTPS (Explicit) |
default port: 21, a plain connect elevated to an SSL/TLS connection. |
|
FTPS (Implicit) |
default port: 990, an SSL/TLS connect is immediately provided. |
Do not use prefixes like ftp:// or ftps:// in the host field.

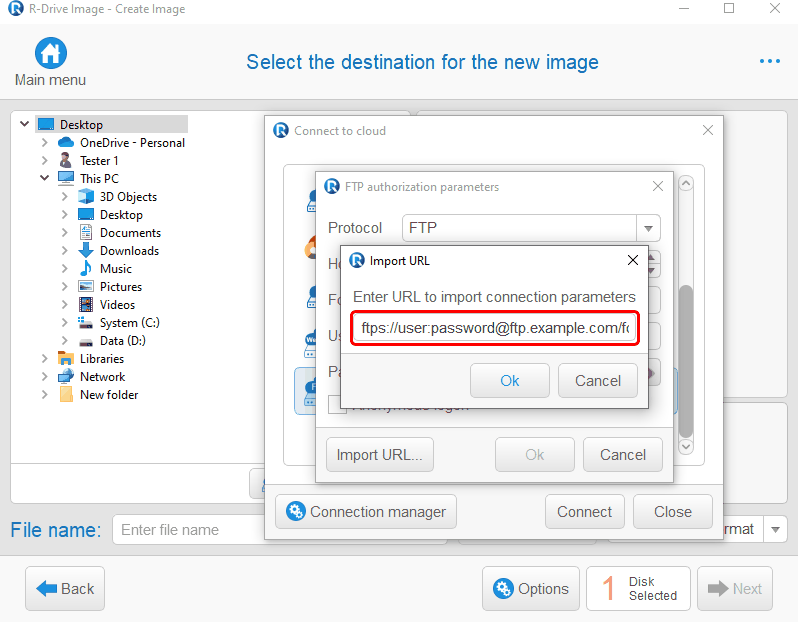

You may import an ftp url in the following form
Import FTP parameters

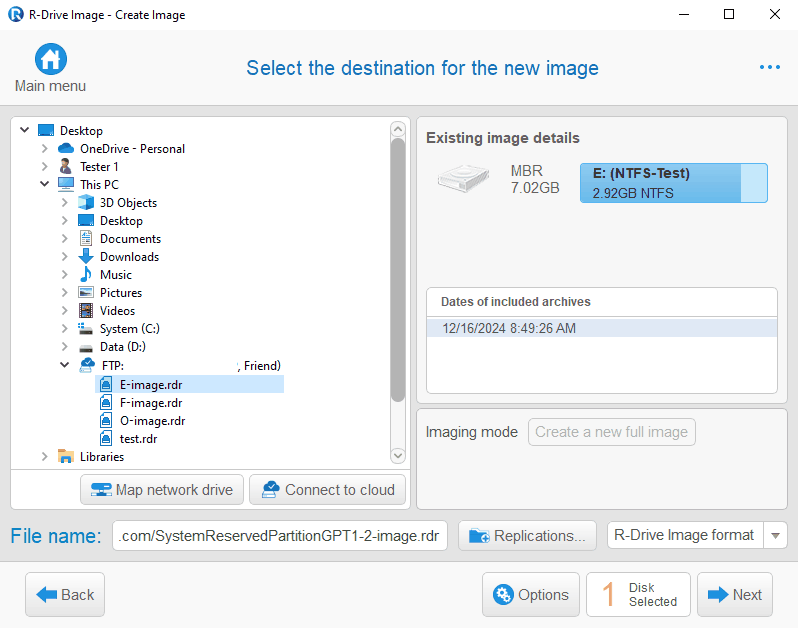

| > | Now a connection to the FTP server appears in the folder tree |
An FTP connection
