Create an Image

Note: You may read about Support for Various Disk Partition Schemes and File Systems to learn more about possible options for your specific case.

It is recommended that you print out this topic and have the hardcopy on hand while you are performing this action .

Note: This help page describes the operation of the TUI startup version. Go to the Create an Image help page for the GUI version and to the network drives help If necessary.

If there is a non-IDE disk controller in your system, or you plan to use network disks or external hardware devices , first check the list of supported hardware .

If you plan to use any external device, turn it on before starting the system.

If the motherboard in your computer supports the Serial ATA (SATA) devices, but IDE disks are also present, only the SATA devices should be set to the Enhanced Mode in BIOS.

1	Restart your computer in the startup mode

2	Select Create an Image on the Select an action and press the N key

Use the arrow keys to switch between the options.

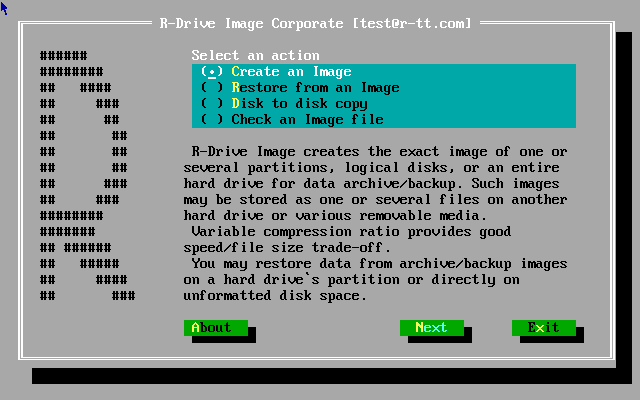

Action Selection Panel

R-Drive Image will start analyzing the computer disk configuration, the Progress... message showing the progress. Then the R-Drive Image: Select an object you want to archive/backup/copy panel will show the configuration.

H	Hard drive
P	Primary partition
L	Logical disk
U	Unallocated space

3	Select an object which image you want to create on the Select source object panel and press the N key

Use the arrow keys to switch between the objects and the SPACEBAR to select the object.

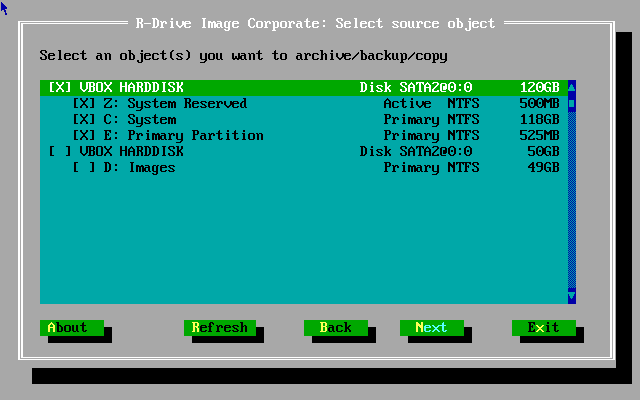

Select Source Object Panel

4	Select the place on the Create an Image panel to which the image files will be written, specify the file name, and press the O key

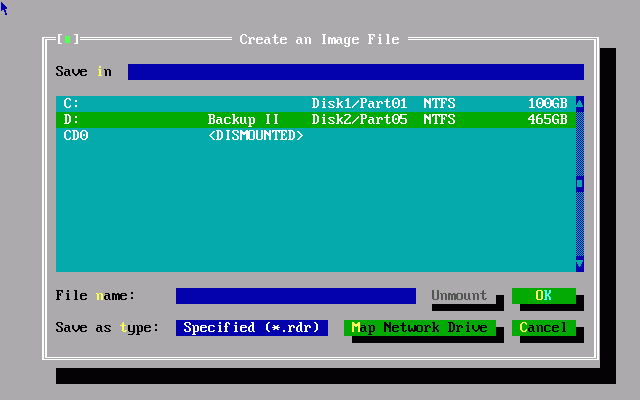

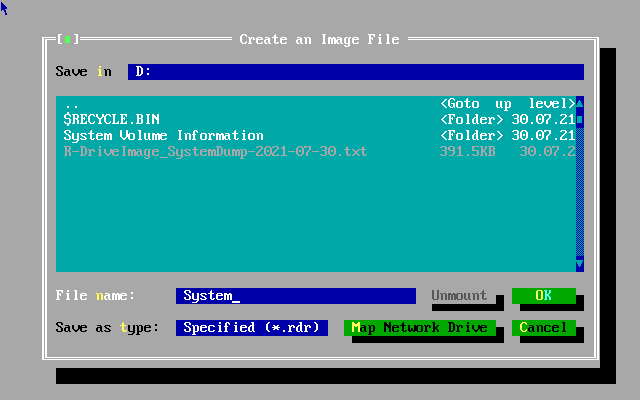

Create an Image File Panel

R/O	Read-only disk. You cannot create images on such disks

Use the Tab key to switch between the control areas.

External USB drives with the NTFS file system : the startup version of R-Drive Image can save image files on such disks if they are properly disconnected in a Windows system using the Safely Remove Hardware icon in the system tray or while shutting Windows down.

You may also connect network drives.

5	Specify image options on the Image Options panel and click the Next button

You may specify image options on this panel.

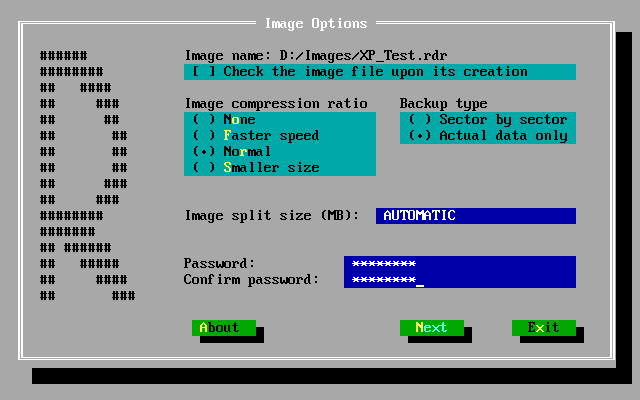

Image Options Panel

Image options

Options
Image name:	Shows the file name for the image. You cannot change the file name on this panel.
Check the image file immediately upon its creation	Select this option if your want R-Drive Image to check the newly created file image for its consistency. This may be useful for storing image files with critical data. Please note that this operation requires additional time.
Image compression ratio	You may compress the data in the image to save space. Please note that the smaller size you select the more time will be spent to create the image file and vise versa.
Backup type	You may store in the image either the exact Sector by backup copy of the object or Backup useful information only , that is, you do not have to store empty space of the object in image files. See Support for Various Disk Partition Schemes and File Systems for the list of supported file systems.
Estimated size	Shows the estimated size of the image file. An actual image size depends on how much empty space is on the selected partition and what file types are there .
Image split size	You may set this option to Automatic and let Windows decide how to split the image file. This mostly depends on the file system on the destination disk. You may also either explicitly specify the split size, or choose a preset for various devices with removable storage. Select Fixed size for that.
Password	You may protect your image file with a password. Note: If you leave the Encrypt image option clear this feature will provide a relatively moderate protection against conventional unauthorized access. If this option is selected, R-Drive Image will encrypt the image using the AES-XTS algorithm.
Image description	You may attach a text description to the image for annotation. Maximum length of the description is 255 characters.

6	Verify that the information on the Confirm operations panel is correct and click the N key

>	R-Drive Image will start creating the image file

The Progress window will show the progress of the current operation and overall process. If you selected a read-only disk as the target, you will see the File is read-only. Press OK to retry . message.
