Apple CoreStorage/File Vault/Fusion Drive Volumes

Home  Previous  Next

The macOS operating system has the following disk management systems:

File Vault, is a disk encrypted utility;

Fusion Drive is an Apple's hybrid drive technology;

CoreStorage is a logical volume management system.

R-Drive Image supports all these technologies and can unlock their encrypted volumes (hard drives and images).

Apple CoreStorage/File Vault/Fusion Drive Volumes Imaging

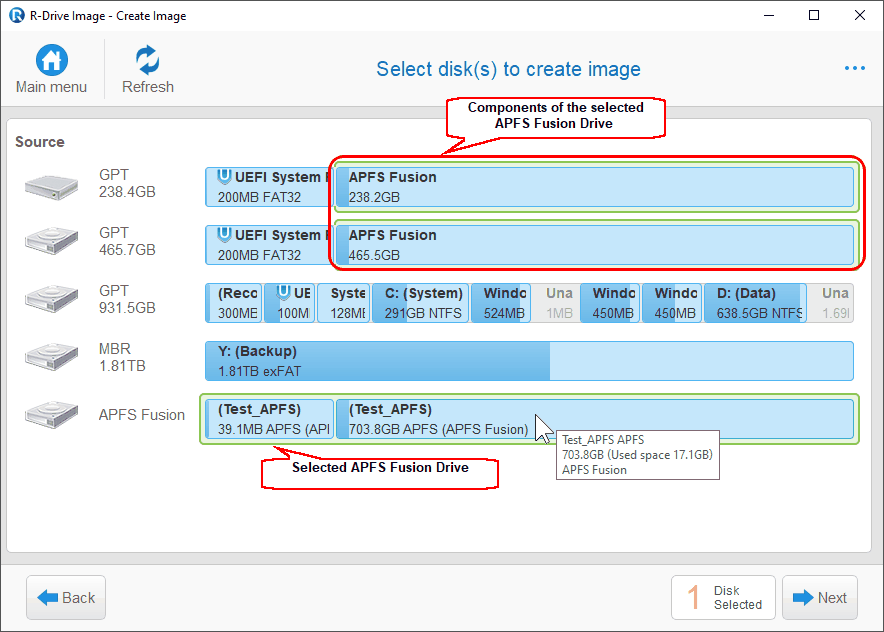

R-Drive Image displays both those volumes and their members on the Partition Selection panel.

Click to enlarge

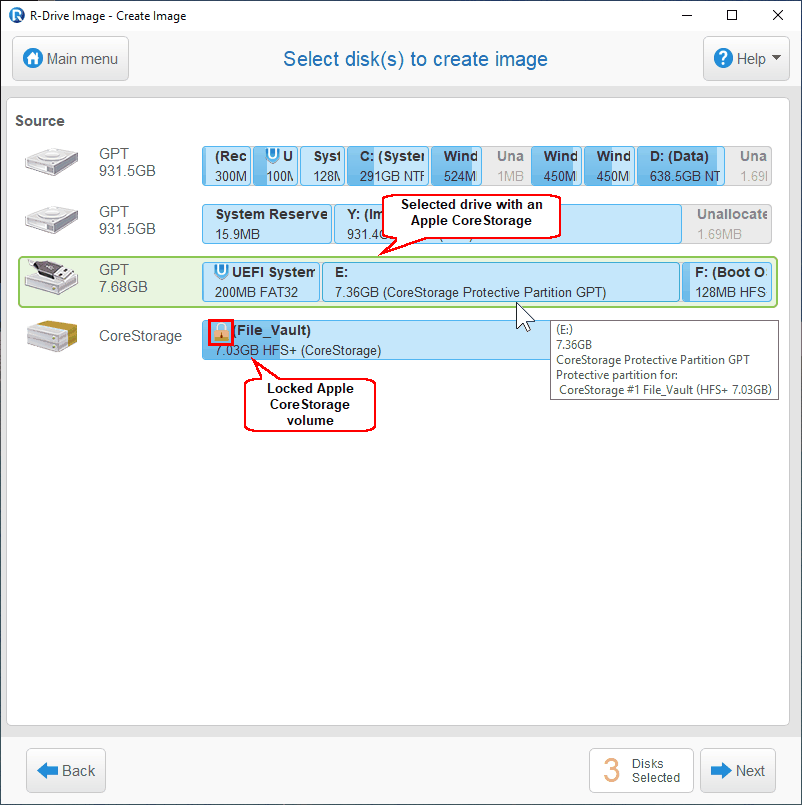

Locked Apple CoreStorage

In the above case, the entire hard drive will be imaged.

You may unlock encrypted volumes and image only them. Click the locked volume and enter the password in the Unlock encrypted drive dialog box.

Click to enlarge

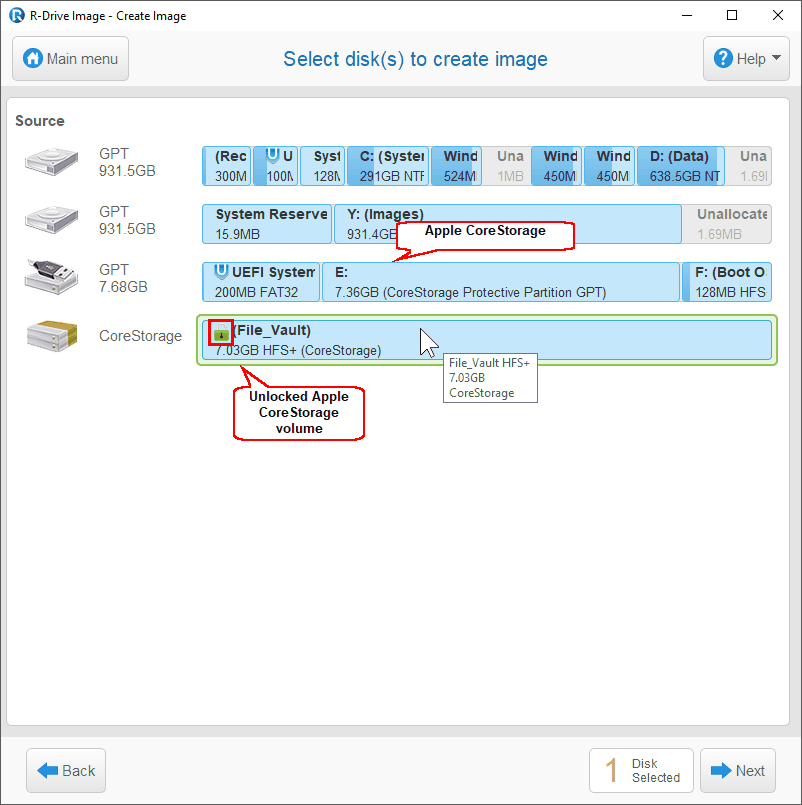

Unlocked Apple CoreStorage

In this case the volume will be image without encryption

Data Restore from an Image of CoreStorage/File Vault/Fusion Drive Volumes

You may restore data from an image of an Apple  CoreStorage/File Vault/Fusion Drive volume with the limitations described in the Support for Various Disk Partition Schemes and File Systems section.

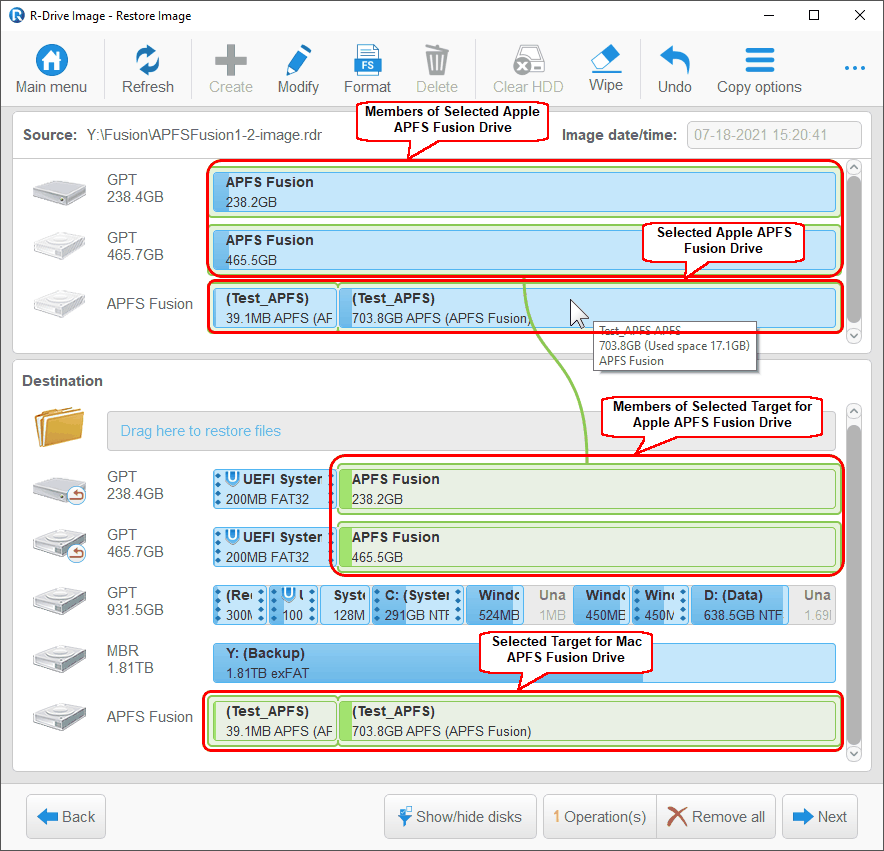

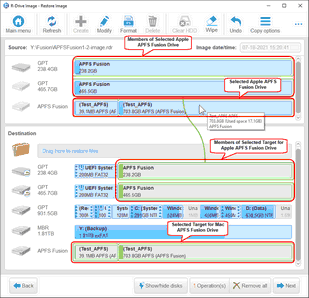

Data restore from an image of an entire storage device to another storage device.

Click to enlarge

Apple CoreStorage

In this case the result will be the exact copy of the imaged storage device.

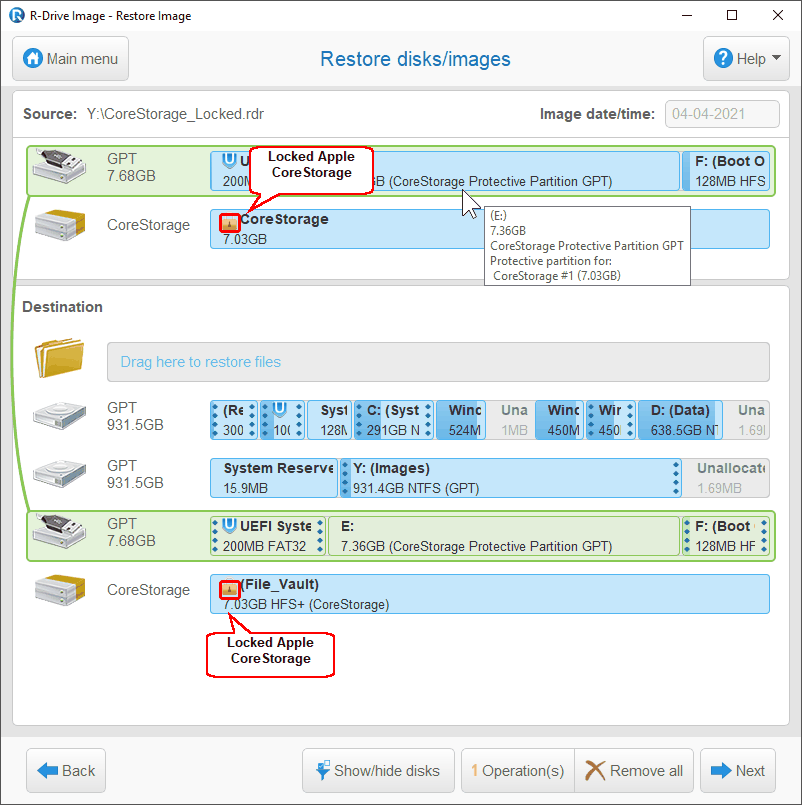

Data restore from an image of an unencrypted an Apple  CoreStorage/File Vault/Fusion Drive volume device to the place of a locked encrypted volume.

Click to enlarge

Apple CoreStorage

In this case the result will be an unencrypted volume on the place of the previous encrypted volume.

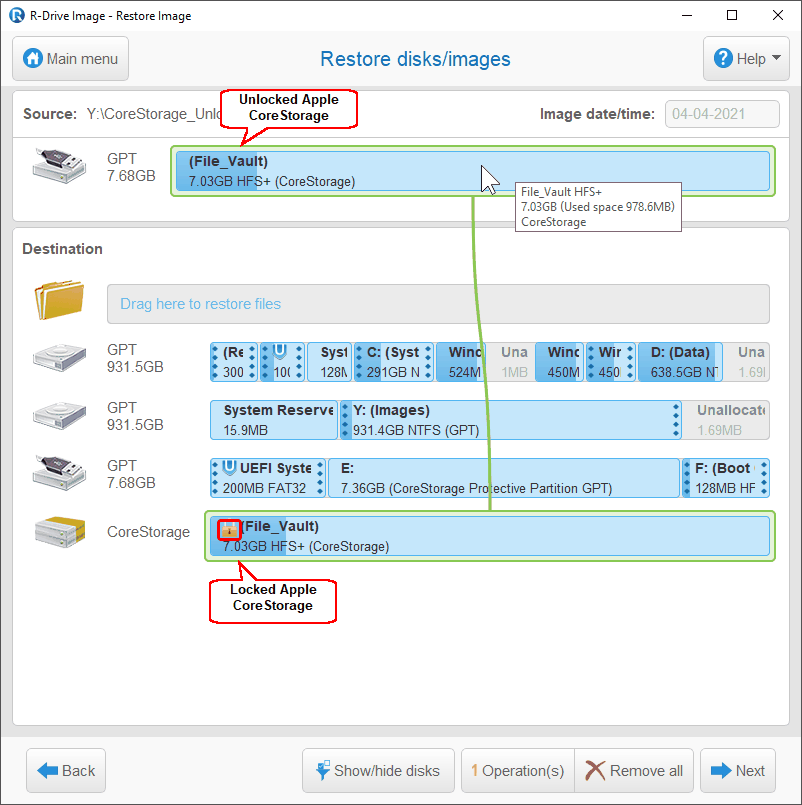

Data restore from an image of an unencrypted an Apple  CoreStorage/File Vault/Fusion Drive volume device to the place of an unlocked encrypted volume.

Click to enlarge

Apple CoreStorage

In this case the result will be an encrypted volume on the place of the previous encrypted volume..
