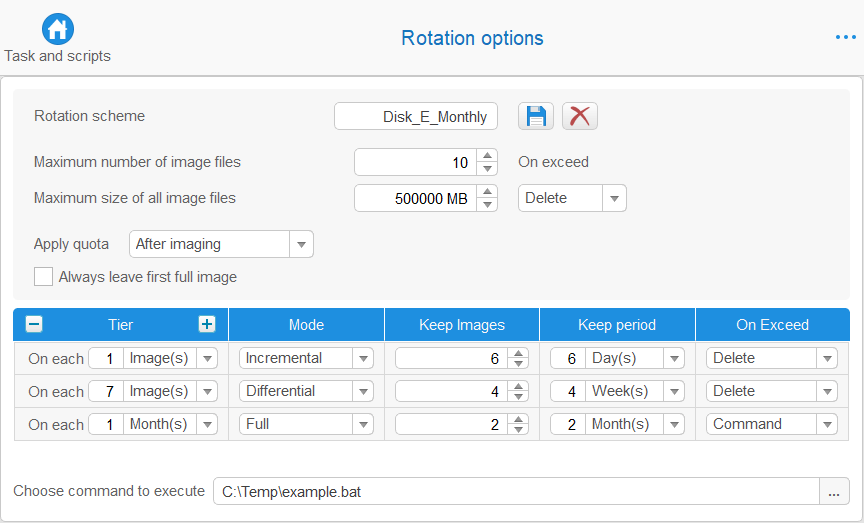

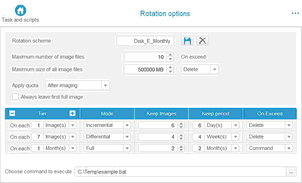

These scheme types are available only in the Corporate , Technician , Commercial , and OEM System Recovery Media versions.
It gives much more flexibility to you in controlling the outcome of the rotation scheme .
Rotation scheme |
The name of the rotation scheme. |
Maximum number of image files |
Specifies the number of image files. If it is exceeded, the older files will be removed. |
Maximum size of all image files |
Specifies the total size of all files. If it is exceeded, the older files will be removed. |
On exceed |
Specifies the action that performs when the quota is exceeded. The following actions are available: No actions Delete Move Command |
Apply quota |
Before & After imaging: the settings will be applied before creating the image, but as if it's already been created. For example, if the number of files is set to 3, and there are already 3 files,the oldest file will be deleted before creation of the new image file. After imaging: R-Drive Image will create the image file first, then deletes the oldest file. |
Always leave first full image |
If this option is selected, the very first image will always be kept. |
Note: when a full image file is deleted according to the specified options, R-Drive Image deletes all differential/incremental image files related to that full image.
Rotation scheme outcome: the first image will be a full one, then next 6 images will be incremental ones, then a differential image, the incremental images will be deleted. then next 6 incremental images and another differential image. A full image will be created once a month.
