Windows Software RAIDs, Mirrors, and Spanned Volumes

Home  Previous  Next

R-Drive Image supports Windows software RAIDs, mirrors, and spanned volumes. Such objects can be managed using the Disk Management item in Computer management.

Click to enlarge

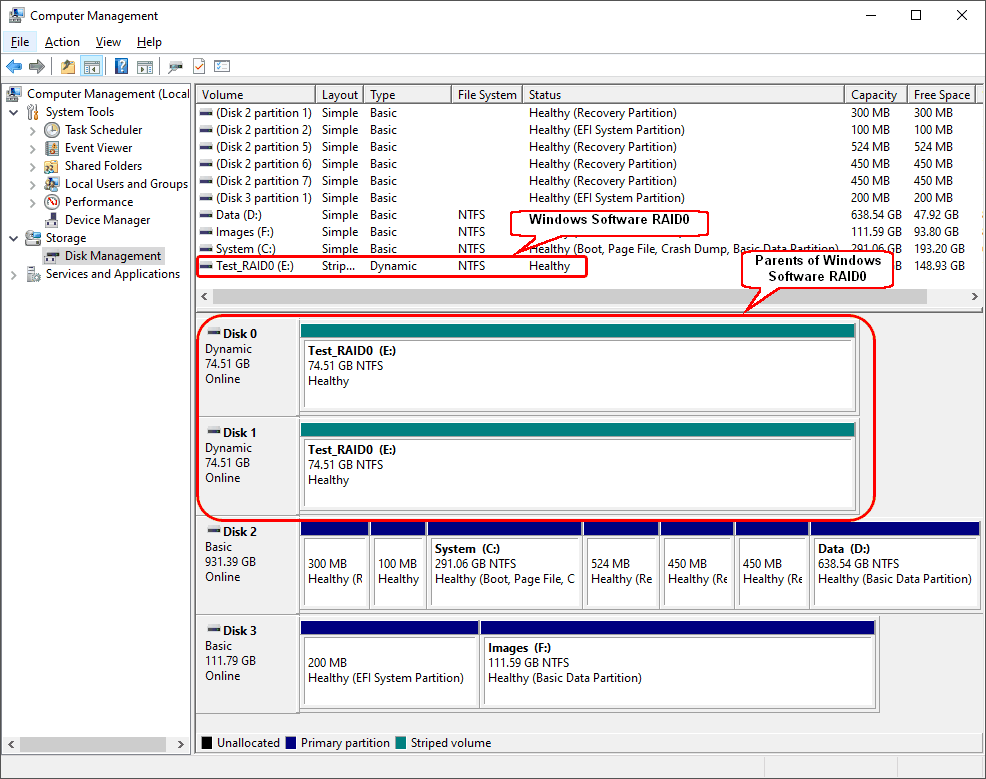

Windows software RAID0

Click to enlarge

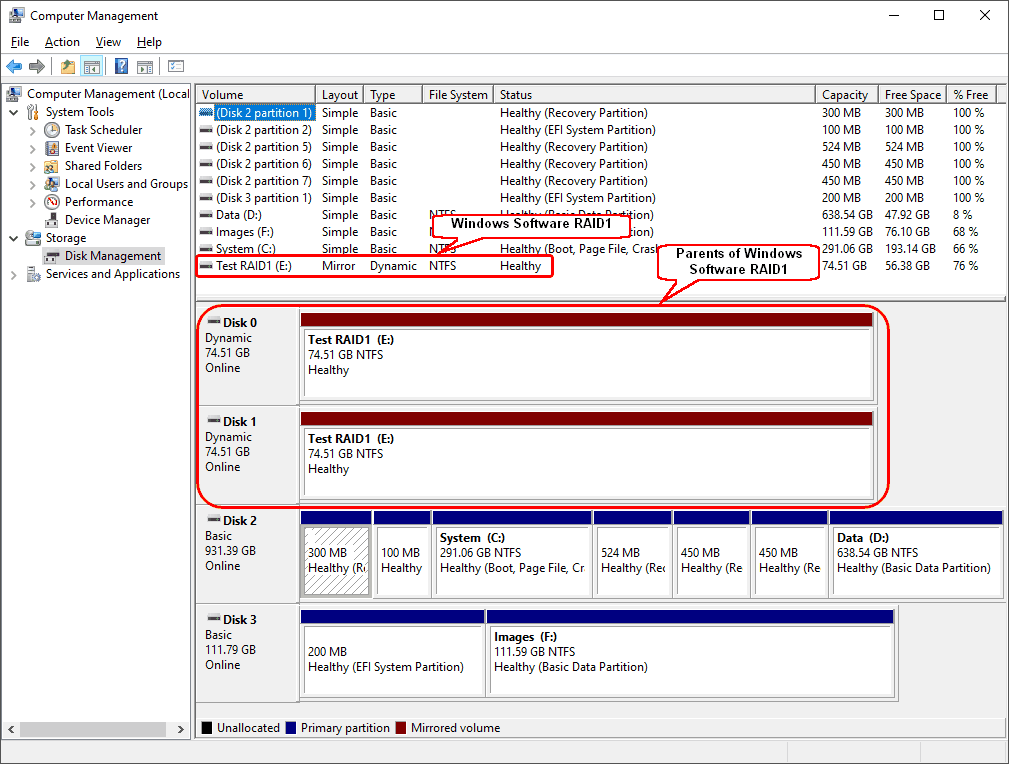

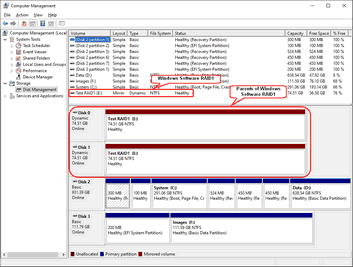

Windows software mirror

Click to enlarge

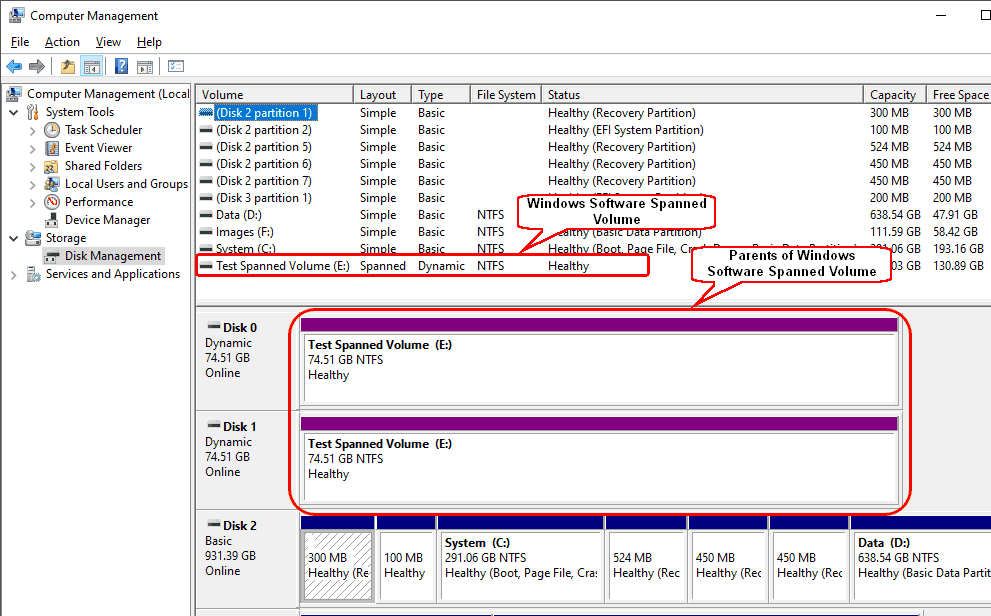

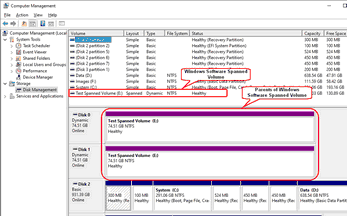

Windows software spanned volume

Windows Software RAIDs, Mirrors, and Spanned Volumes Imaging

R-Drive Image displays those objects similar to their representation in the Windows Disk Manager.

Click to enlarge

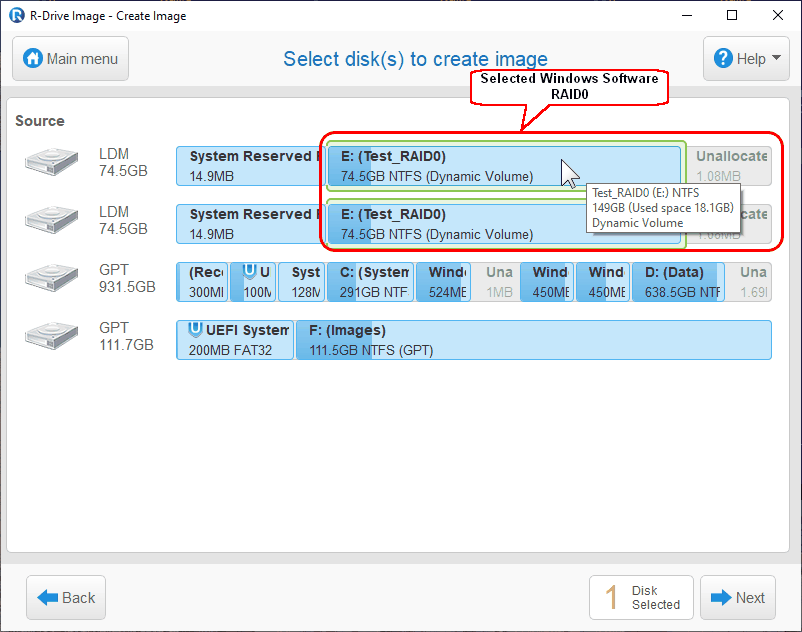

Windows software RAID0

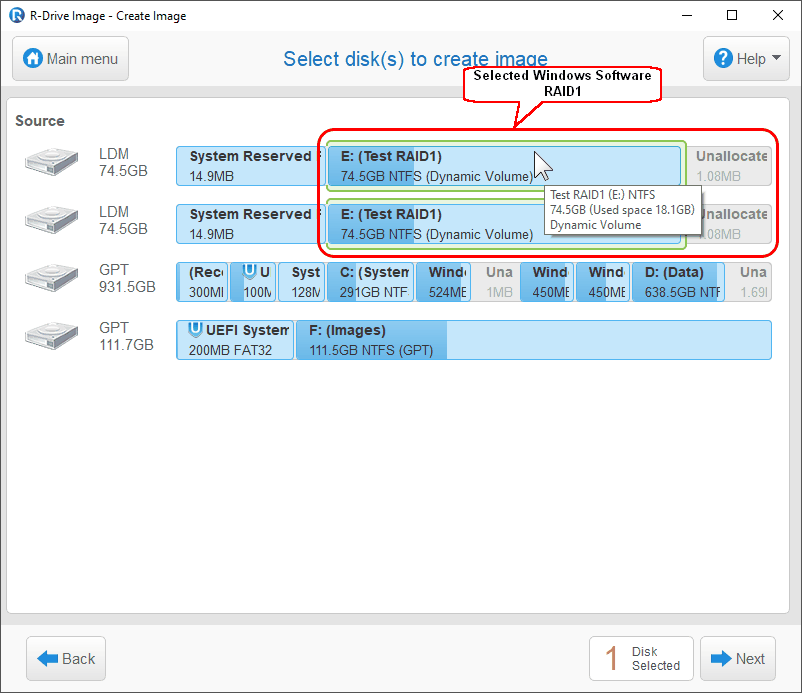

Click to enlarge

Windows software mirror

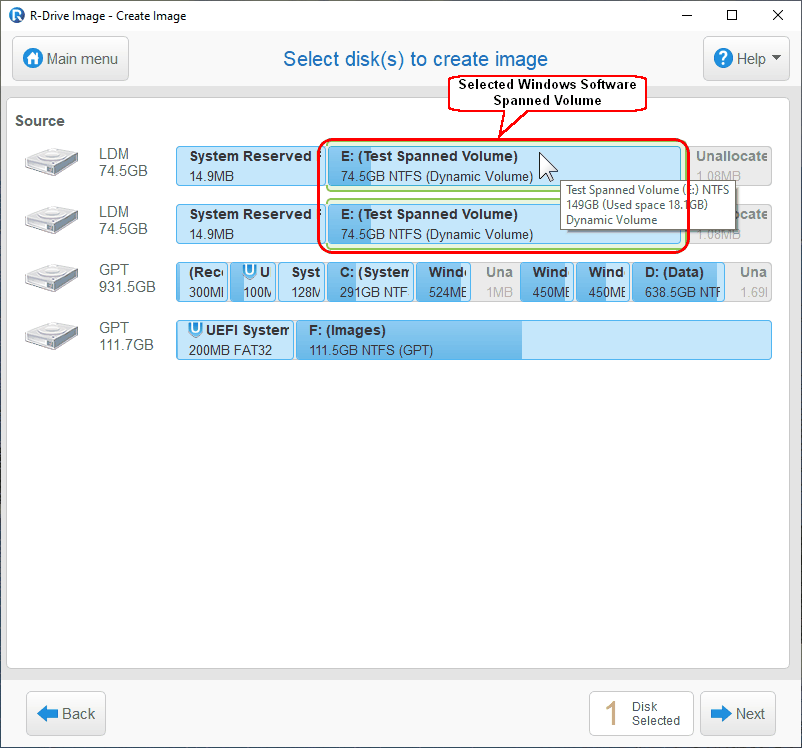

Click to enlarge

Windows software spanned volume

When you select one parent of a Windows software RAID, mirror, or spanned volume, R-Drive Image selects the entire object.

Data Restore from an Image of a Software RAID, Mirror, and Spanned Volume

You may restore data from an image of a Windows software RAID, mirror, and spanned volume with the limitations described in the Support for Various Disk Partition Schemes and File Systems section.

Click to enlarge

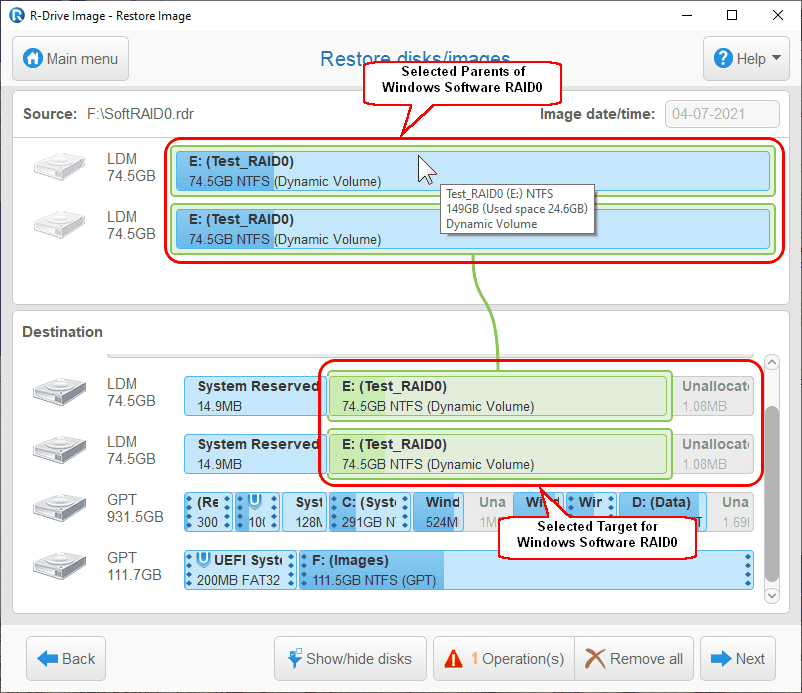

Windows software RAID0

Click to enlarge

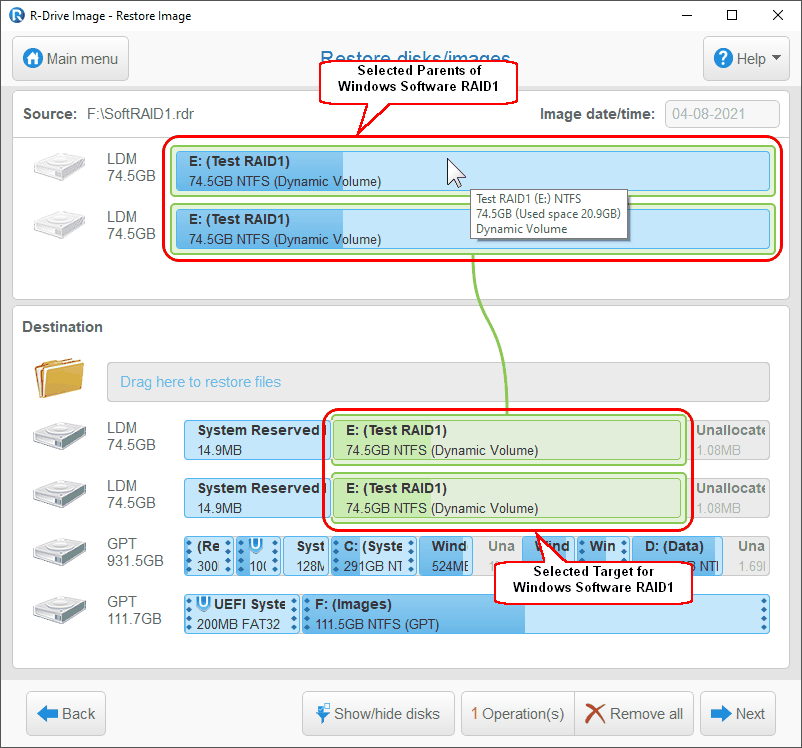

Windows software mirror

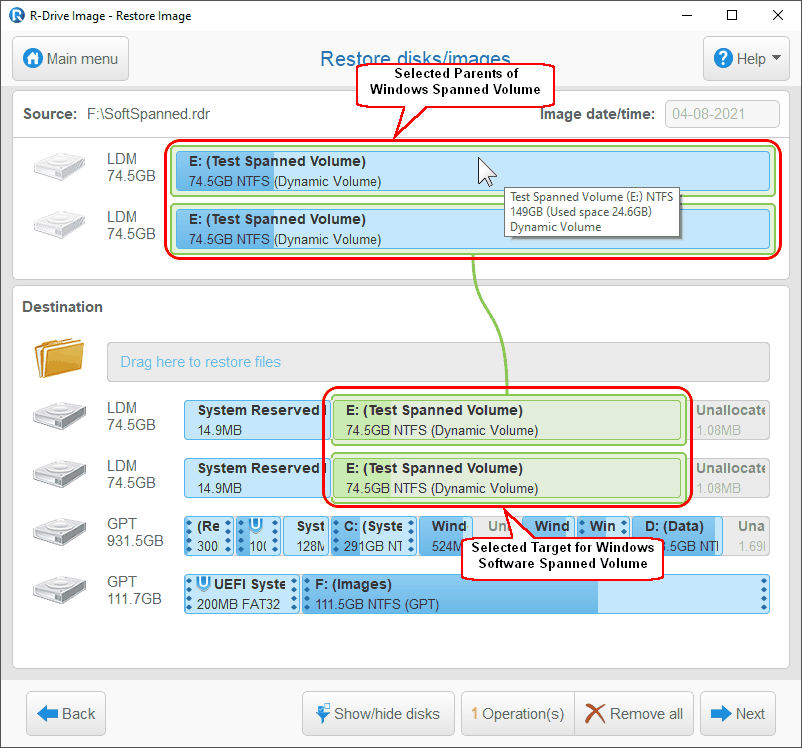

Click to enlarge

Windows software spanned volume
