Check an Image File

To check an image file:

1	Click Check an Image File on the Action Selection panel

R-Drive Image will show you the Image File Selection panel with the disks/folder structure.

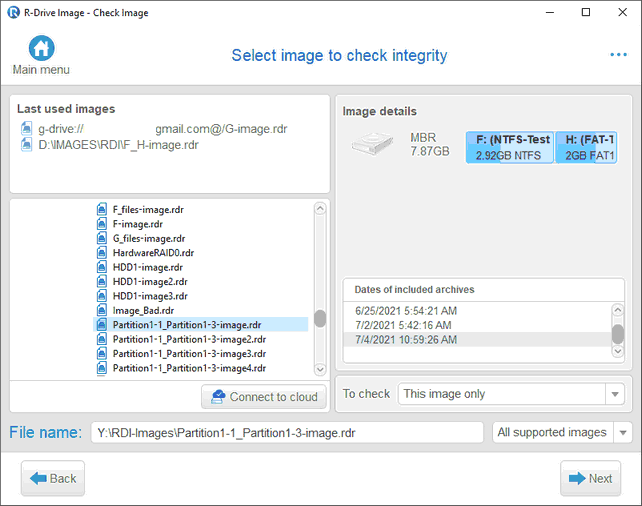

2	Select the file with the image on the Image File Selection panel and click the Next button

When you click the file, you may view its content in the right pane.

More information...

Objects in Image Files

Primary partition Logical disk Unallocated space Other partition type

Image with one logical disk

Image with two logical disks on one hard drive

Image with two logical disks on two hard drives

If the image file is password-protected, the Password prompt... message will appear. Enter the password and click the OK button.

3	Verify that the information on the Processing panel is correct and click the Start button

You may also create a script for this action. Click the Script to Clipboard button and paste the script to any text-processing utility

>	R-Drive Image will start checking the data in the image file.

When the image is checked, the Object checked successfully message will appear if the image file is good. If it is corrupted, R-Drive Image will show the Image corrupted message.

The Disk Actions chapter explains basic disk actions.

The Startup Version chapter explains how to perform disk actions using the R-Drive Image Startup Version.

The Technical Information chapter gives technical information on Supported CD and DVD Recorders and List of Hardware Devices Supported in the Startup Mode and another useful technical information.

Follow this link to obtain R-Drive Image Contact Information and Technical Support
