If your computer is on a local network, you may write image files or restore images to / from network drives. To do so, you need to map such a network drive.

To map a network drive,

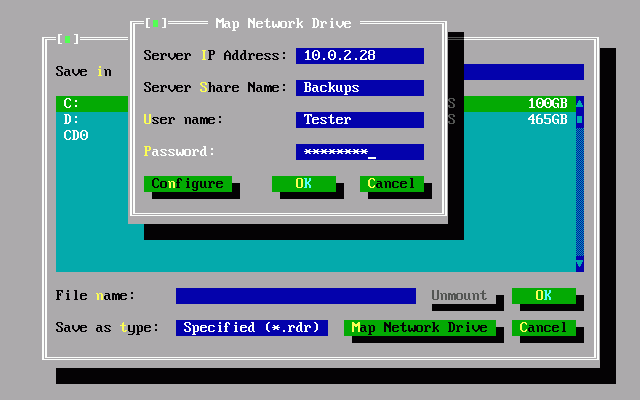

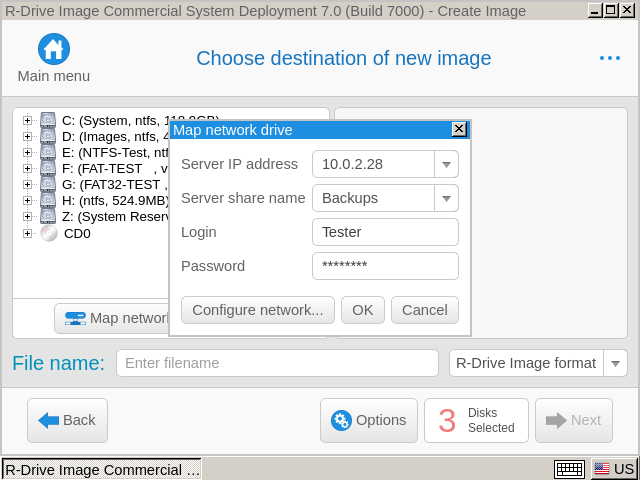

1Click the Map Network Drive button and enter required information
Click to enlarge/collapse

Map Network Drive



Click to enlarge/collapse

Map Network Drive

For the network drive' path //SERVER/Backups,

Server IP address: The IP address of the SERVER computer

Server share name: Backups.

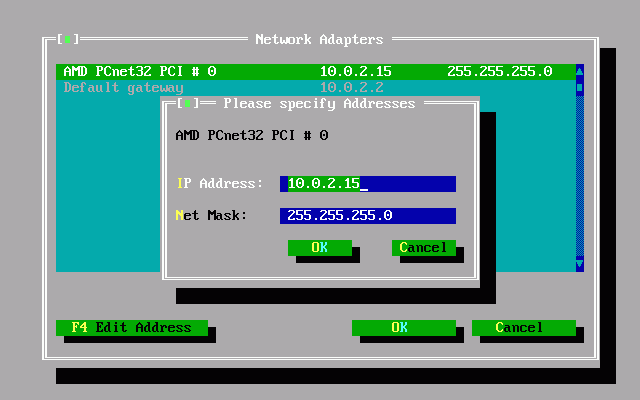

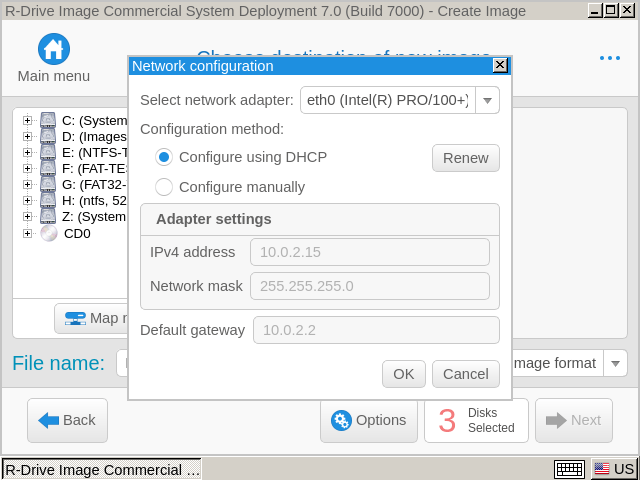

Sometimes it may be necessary to manually configure network settings, if, for example, there is no DHCP server on the network. Click the Configure network button, select the required field, click the Edit Address button, and enter the required information.

Click to enlarge/collapse

Network Settings



Click to enlarge/collapse

Network Settings
