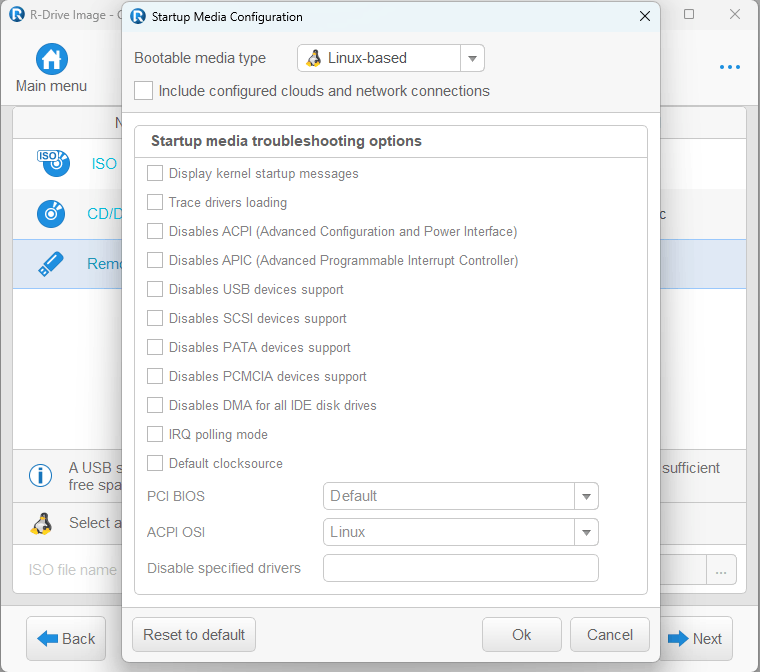

Startup Media Troubleshooting Options

Home

Those options will help you if you have problems with starting you computer up from the R-Drive Image startup disks. Please, contact the R-Drive Image Technical Support Team for more information.

Display kernel startup messages

if this checkbox is enabled, R-Drive Image displays all startup messages. That may be useful to locate the source of the problem when your system hangs during R-Drive Image startup.

Trace drivers loading

Select this checkbox when you want to see loading drivers to find which one may lock the system.

Disables ACPI

Disables APIC

Select these checkboxes when your system detects some hardware incorrectly during R-Drive Image startup and displays messages like: hda: lost interrupt

Disables USB devices support

Select these checkbox if your system experiences problems with USB devices during R-Drive Image startup.

Disables SCSI devices support

Select these checkbox if your system experiences problems with SCSI devices during R-Drive Image startup.

Disables PATA devices support

Select these checkbox if your system experiences problems with Parallel ATA devices during R-Drive Image startup.

Disables PCMCIA devices support

Select these checkbox if your system experiences problems with PCMCIA devices during R-Drive Image startup.

Disables DMA for all IDE disk drives

Select these checkbox if your system experiences problems with IDE disks during R-Drive Image startup.

IRQ polling mode

Select this checkbox if R-Drive Image does not recognize a device although it is in the supported device list.

Default clocksource

Select this checkbox to select computer default clocksource.

PCI BIOS

Select an appropriate option if your system experiences problems with computer hardware.

ACPI OSI

An option informing the computer BIOS which OS type is going to start. Default is Linux, but it may cause the computer BIOS to drop support for some computer hardware. Change this option if the startup version cannot recognize some computer hardware, or it malfunctions.

Disable specified drivers

Enter the drivers that may cause system lock. Driver names should be separated by a space or comma.
